Büsan Substation

Country: Turkey;

End-User: TEIAS;

Project: 154 kV Büsan AIS Substation Relay Panel, Energy SCADA, Communication;

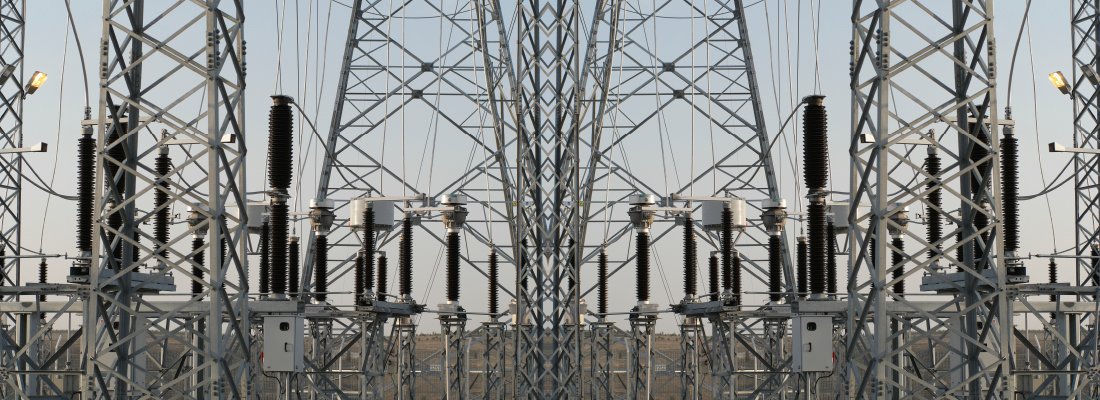

Description: 154 kV Air Insulated Substation, Capacity: 4x100 MVA 154 kV Switchyard, 154 kV: 4 Line Feeder, 4 Transformer Feeder, 1 Coupling Feeder, 34.5 kV Medium Voltage Switchgears: 4 Incoming Feeders, 2 Coupling Feeders, 36 Outgoing Feeders;

Scope of works:

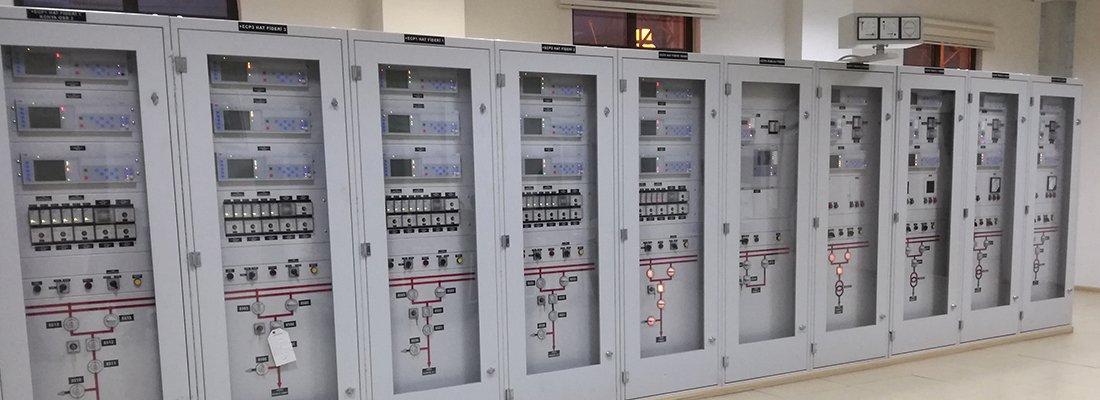

• HV Relay Protection and Control Panels, RTU and Communication Panels, LV Distribution Panel;
• HV Relay Configuration and Parameterization, All Protection and Control Panels, E-plan Design;
• ABB Relion 650 and 670 Series Relays and BCU, MV REF620 and REF615 Relays;
• ABB RTU560, IEC101 with TEİAS National Control Center Communication;

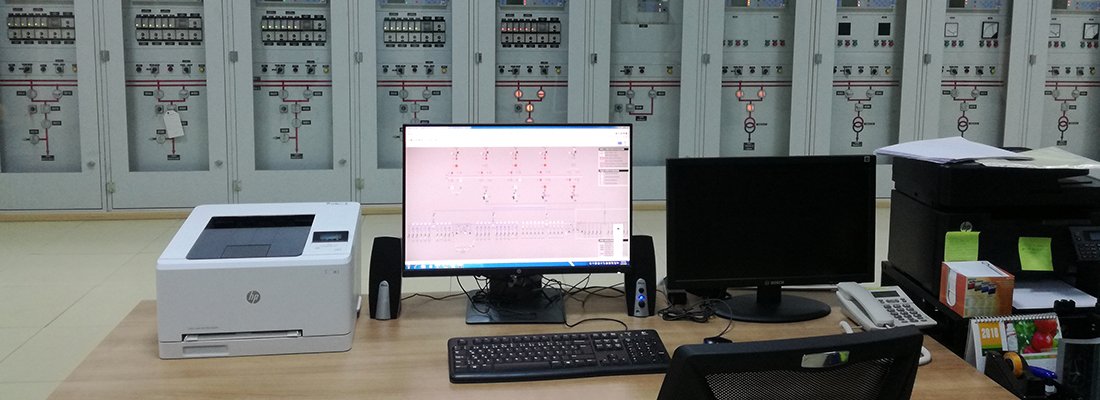

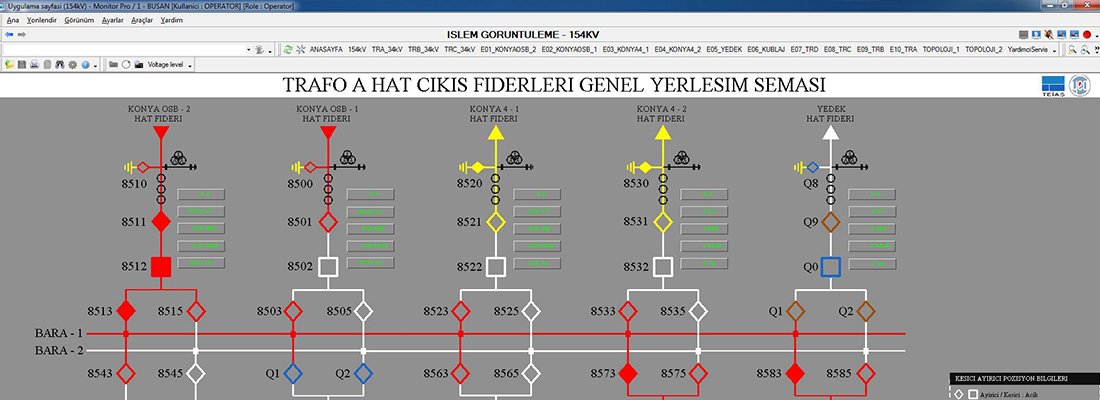

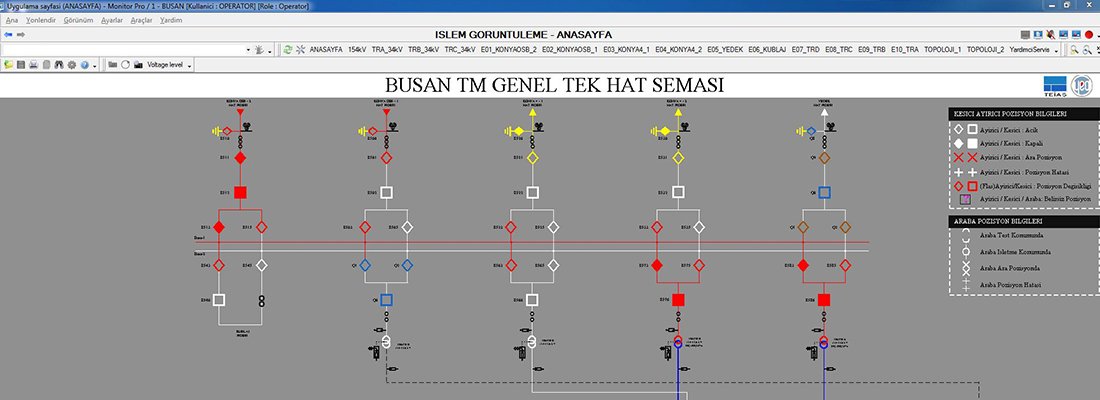

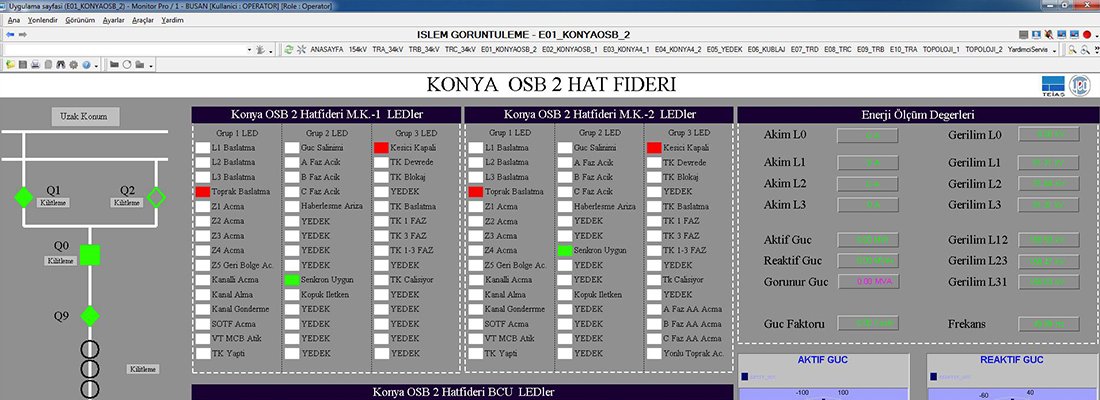

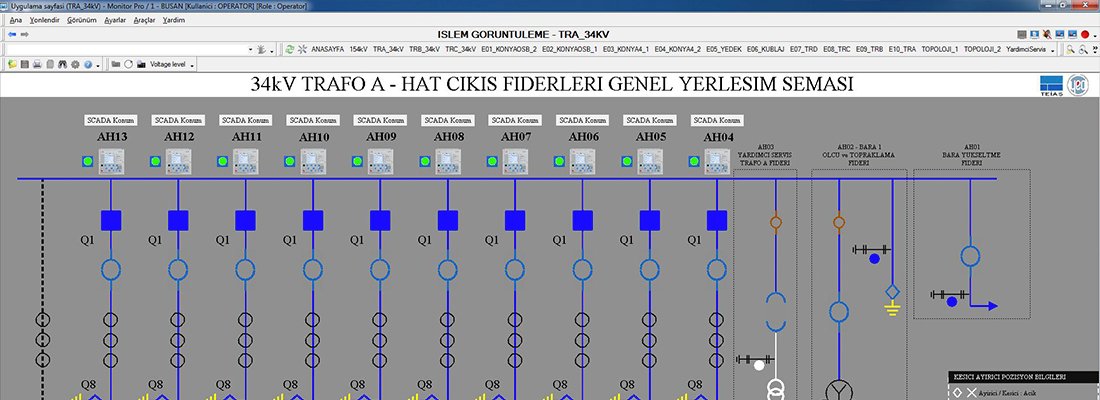

• ABB MicroSCADA, PRP System, IEC 61850 Communication;
• Primer and Seconder Equipment, Test, Commissioning and Trainings"
