Kasimlar HEPP Substation

Country: Turkey;

End-User: Özçelik Insaat & Hanagasi JV;

Project: Kasimlar Hydropower Plant Substation Secondary Works;

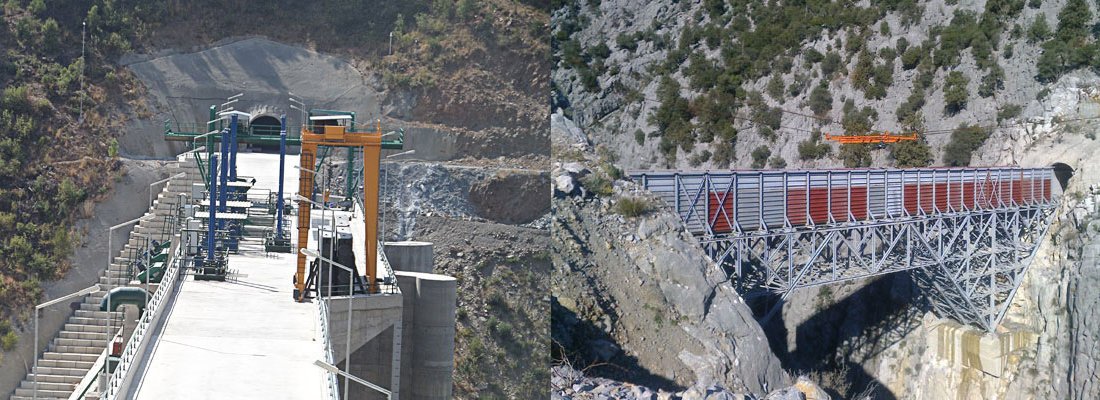

Description: Hydroelectric Power Plant, Height of Dam: 268.2 m, Flow: 34 m3/ s, Installed Capacity: 75 MW, Yearly Total Energy: 199,74 GWh, 154 kV Air Insulated Substation, 154 kV: 2 Line Feeder, 2 Transformer Feeder, 1 Coupling Feeder;

Scope of works:

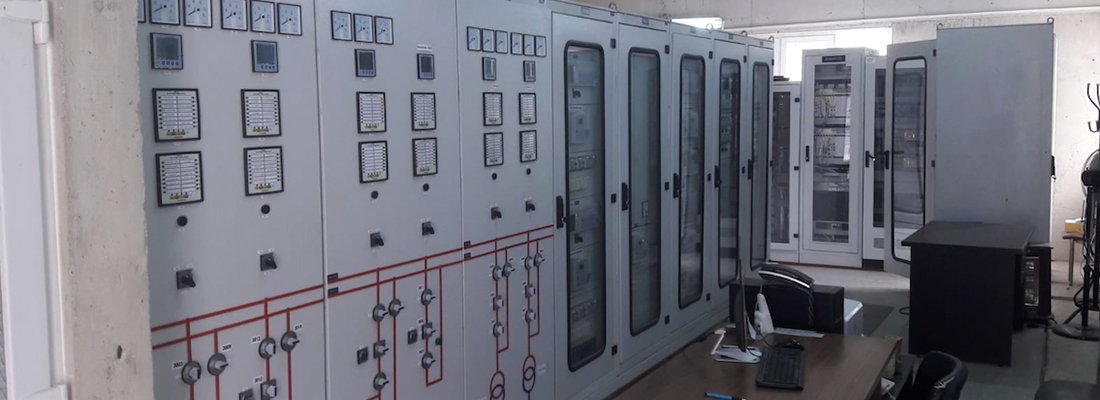

• HV Relay Protection and Control Panels, RTU and Communication Panels, LV Distribution Panel;
• HV Relay configuration and parameterization, Relay Coordination Analysis, All Protection and Control Panels, E-plan Design;
• ABB Relion 650 and 670 Series Relays and BCU, MV ABB REF615 Relays;
• ABB RTU560, IEC101 with TEIAS National Control Center Communication;
• ABB MicroSCADA, IEC 61850 Communication;
