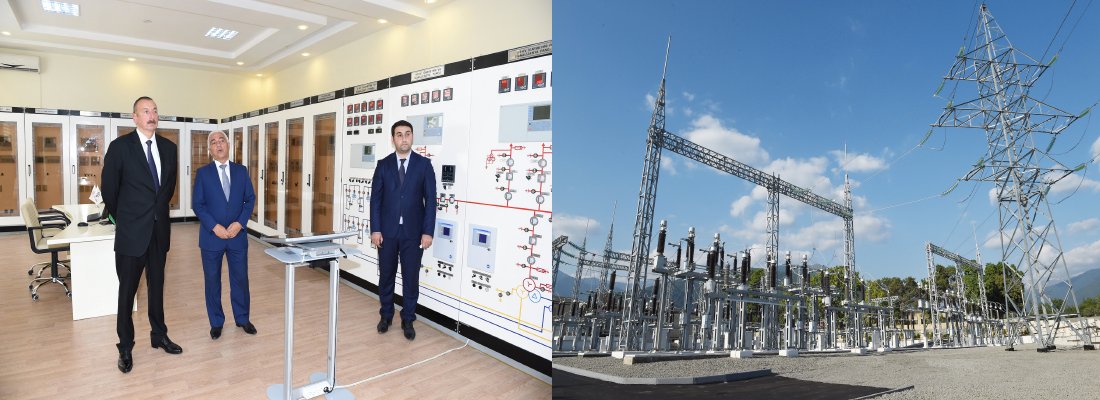

Qax Substation 110 kV

Country: Azerbaijan;

End-User: GBS MMC;

Project: 110kV Qax – Gidromash Substation Automation and Protection System

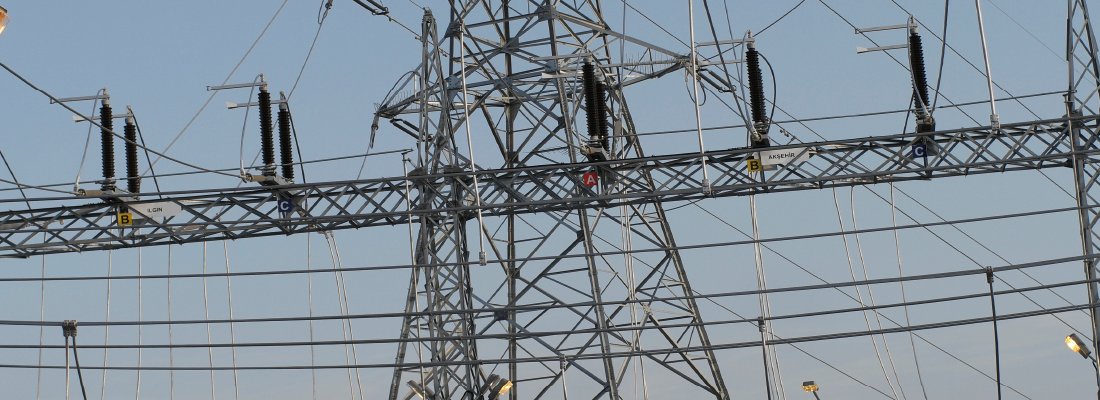

Description: 110 kV Air Insulated Substation, Capacity: 2x50 MVA, 3 Winding Transformers, 110 kV: 4 Line Feeder, 2 Transformer Feeder, 1 Coupling Feeder, 2 Reactor Feeders, 35 kV Medium Voltage Switchgears: 2 Incoming Feeders, 2 Coupling Feeders, 16 Outgoing Feeders, 10 kV Medium Voltage Switchgears: 4 Incoming Feeders, 2 Coupling Feeders, 31 Outgoing Feeders;

Scope of works:

• HV Relay Protection and Control Panels, RTU and Communication Panels, LV Distribution Panel;
• HV Relay Configuration and Parameterization,  All Protection and Control Panels, E-plan Design;
• ABB Relion 650 and 670 Series, Relays and BCU, MV Schneider Micom Relays;
• ABB RTU560, IEC104 with Azerisiq National Control Center Communication;

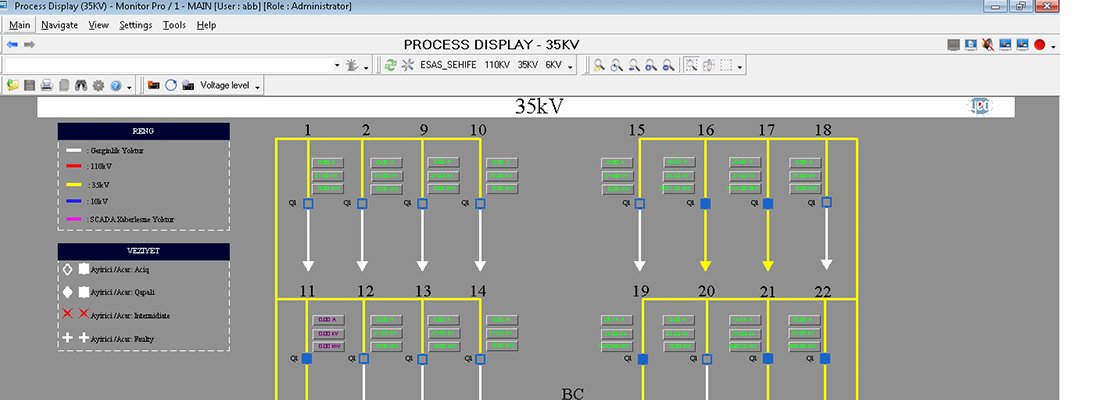

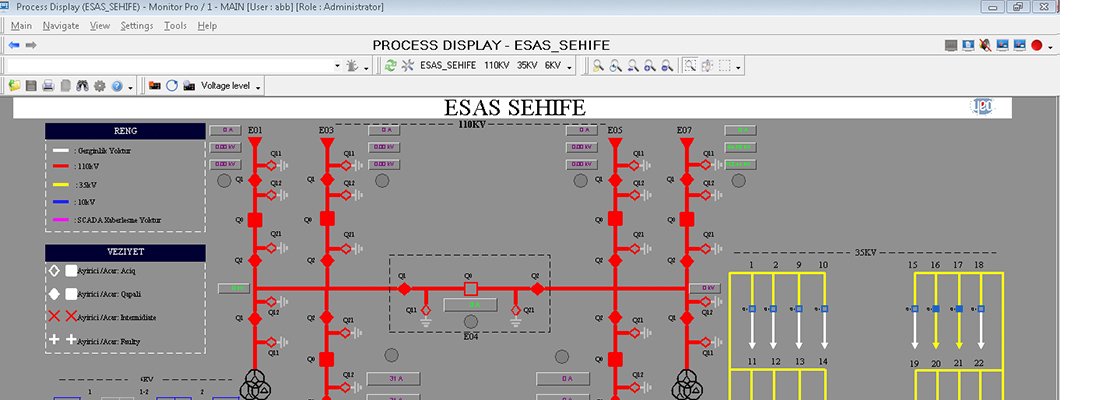

• ABB MicroSCADA, IEC 61850 Communication;
